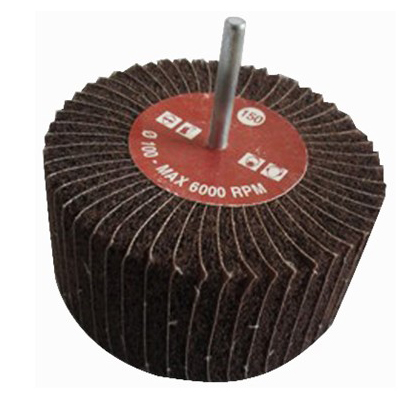

PA615 Noven and interleaved flap wheel

PA615 Noven and interleaved flap wheel

Featues:
● Preminum 3M Non-woven cloth
● J-wight Alumia oxide cloth
● 100% non-woven cloth or mix A/o cloth
Benefits
● General purpose surface finighing
● Best stock removal
● Excellent for sensitive material surface
Application
● all surface cleaning and polishing
● Ferrous and non-ferrous metals

Description

Comments

Diameter	Diameter	Shaft size	Shaft size	Grit	Speed	Box	Art No.	Bar code
[Inch]	[mm]	[Inch]	[mm]	[pcs]	[r.p.m]	[pcs]	Art No.	Bar code
2x1	50x25	1/4	6	M	13700	10	8300	69458268 8300
2x1	50x25	1/4	6	F	13700	10	8301	69458268 8301
2x1	50x25	1/4	6	VF	13700	10	8302	69458268 8302
3x1	80x25	1/4	6	M	8600	10	8303	69458268 8303
3x1	80x25	1/4	6	F	8600	10	8304	69458268 8304
3x1	80x25	1/4	6	VF	8600	10	8305	69458268 8305
3x2	80x50	1/4	6	M	8600	10	8306	69458268 8306
3x2	80x50	1/4	6	F	8600	10	8307	69458268 8307
3x2	80x50	1/4	6	VF	8600	10	8308	69458268 8308
2x1	50x25	1/4	6	M+60	13700	10	8400	69458268 8400
2x1	50x25	1/4	6	F+100	13700	10	8401	69458268 8401
2x1	50x25	1/4	6	VF+150	13700	10	8402	69458268 8402
2x1	50x25	1/4	6	M+80	13700	10	8403	69458268 8403
2x1	50x25	1/4	6	F+150	13700	10	8404	69458268 8404
2x1	50x25	1/4	6	VF+240	13700	10	8405	69458268 8405
3x1	80x25	1/4	6	M+60	8600	10	8406	69458268 8406
3x1	80x25	1/4	6	F+100	8600	10	8407	69458268 8407
3x1	80x25	1/4	6	VF+150	8600	10	8408	69458268 8408
3x1	80x25	1/4	6	M+80	8600	10	8409	69458268 8409
3x1	80x25	1/4	6	F+150	8600	10	8410	69458268 8410
3x1	80x50	1/4	6	VF+240	8600	10	8411	69458268 8411
3x2	80x50	1/4	6	M+60	8600	10	8412	69458268 8412
3x2	80x50	1/4	6	F+100	8600	10	8413	69458268 8413
3x2	80x50	1/4	6	VF+150	8600	10	8414	69458268 8414
3x2	80x50	1/4	6	M+80	8600	10	8415	69458268 8415
3x2	80x50	1/4	6	F+150	8600	10	8416	69458268 8416
3x2	80x50	1/4	6	VF+240	8600	10	8417	69458268 8417

Name：allowed

Time:2012-12-16

Message：

Why the grinding wheel are not allowed to water on?

Replay:

Loss of balance, in order to prevent wet accident. Here is the wheel Safety 1. Utility grinders have someone responsible for regular checks to ensure the normal operation. 2. The operator must wear protective glasses, start dusting device, in order to work. 3. Grinder performance are not familiar with, you can not use a grinder. 4. Grinder before starting to seriously look a grinder shield or debris. Sure no problem, and then activate the grinder. 5. Grinder wear serious, long-term use runout and vibration are not allowed to use. 6. Grinder for maintenance adverse failure, or the grinding wheel axis shaking, no child care the turret, installation does not meet safety requirements, are not allowed to start.
