Home > Products >Abrasive Flap Disc > SG855 Industy Trimmable Line

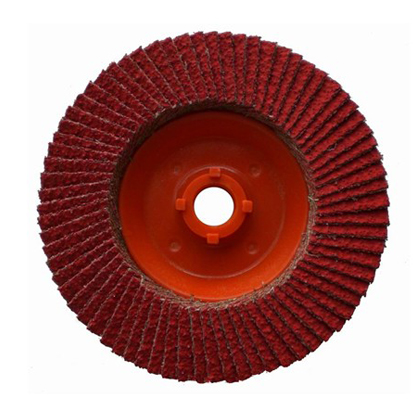

SG855 Industy Trimmable Line

Featues:
● VSM Ceramics SK855/850x Top Size
● Aggressive cutting action & abrasive additives
● High density flaps with extra-long flaps
● Reinforced Nylon Trimmable backing
Benefits
● High,Consistent stock removal
● No discolouring of the workpiece
● 3-5 times life than zirconia flap disc
Application
● High-alloyed steel,Chrome &chrome-nickel steel
● Stainless steel, cast iron, non-ferrous metals
Description
Comments
Diameter
Diameter
Flaps
Flap size
Grit
Speed
Box
Shape
Art No.
Bar code
[Inch]
[mm]


[mm]


[r.p.m]
[pcs]






4.5x5/8-11
115x15
90
25x19
40
13300
10
T27
24000
69458268 24000
4.5x5/8-11
115x15
90
25x19
60
13300
10
T27
24017
69458268 24017
4.5x5/8-11
115x15
90
25x19
80
13300
10
T27
24024
69458268 24024
4.5x5/8-11
115x15
90
25x19
120
13300
10
T27
24031
69458268 24031
5x5/8-11
125x15
90
30x19
40
12200
10
T27
24048
69458268 24048
5x5/8-11
125x15
90
30x19
60
12200
10
T27
24055
69458268 24055
5x5/8-11
125x15
90
30x19
80
12200
10
T27
24062
69458268 24062
5x5/8-11
125x15
90
30x19
120
12200
10
T27
24079
69458268 24079

Name:materials
Time:2013-01-22
Message:
Using state-of-the-art cutting tools and cutting materials
Replay:
Change some of the traditional processing methods, efficient cutting tools can improve processing efficiency. As we all know, the the ordinary drilling process is lengthy processing operations, but shallow hole diamond drilling, not only eliminates the need for drill center hole process, drilling efficiency usually raise more than 3 times. Performing a deep hole boring processing, because of the longer of the tool, the tool less rigid, vibration generated in the cutting process to prevent the tool, resulting in a decline in the quality of the machining precision and surface. Cutting parameters are usually not too high. If the boring tool with a damping device, you can improve the cutting parameters, thereby improving productivity. Advanced cutting materials, such as ceramics, metal ceramics, cubic boron nitride (CBN) and diamond (PCD) and the properties of these materials can improve the cutting speed, processing some difficult-to-machine material to milling and grinding to turning instead of grinding, to further improve the processing efficiency.
Name:cutting
Time:2013-01-22
Message:
Using state-of-the-art cutting tools and cutting materials?
Replay:
Change some of the traditional processing methods, efficient cutting tools can improve processing efficiency. As we all know, the the ordinary drilling process is lengthy processing operations, but shallow hole diamond drilling, not only eliminates the need for drill center hole process, drilling efficiency usually raise more than 3 times. Performing a deep hole boring processing, because of the longer of the tool, the tool less rigid, vibration generated in the cutting process to prevent the tool, resulting in a decline in the quality of the machining precision and surface. Cutting parameters are usually not too high. If the boring tool with a damping device, you can improve the cutting parameters, thereby improving productivity. Advanced cutting materials, such as ceramics, metal ceramics, cubic boron nitride (CBN) and diamond (PCD) and the properties of these materials can improve the cutting speed, processing some difficult-to-machine material to milling and grinding to turning instead of grinding, to further improve the processing efficiency.
Name:What
Time:2012-12-16
Message:
What instead of grinding wheel cutting machine?
Replay:
The sawing relatively safe! What blade efficiency is not high cost, personal feel that is nonsense. You do not always only Saw one can get a few thirty! Water cutting? If a small business, then a bit unrealistic! Gas cutting speed quickly, but glitches too large (iron oxide), size is not a good guarantee! As for you trying to saw blade safety up is not going to dry, dangerous! ????Abrasive cutter speed too high it is! If you really want to use the words of the cutting machine recommended security vacuum pump, so affordable! But do not know can not, but should be able to get. An big some too should every problem.
