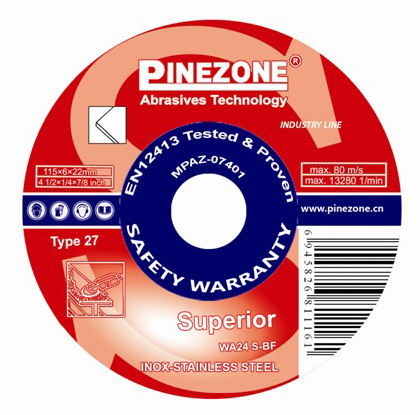

Superior Line Grinding wheel for Stainless Steel

Superior Line Grinding wheel for Stainless Steel

Featues:
● White aluminum oxide mix Zirconia grain
● Double glass fibre nets
● WA24 S-BF hard bond
● T41 Flat center and T42 depressed center
Benefits
● Industry performance,Outstanding service life
● Aggressive stock removal rate
● Low-burr edges
Application
● For stainless steel & alloyes steel grinding application

Description

Comments

Diameter	Diameter	Speed	Box	Shape	Art No.	Bar code
[Inch]	[mm]	[r.p.m]	[pcs]
4x1/4x5/8	100x6.4x16	15200	25		11574	69458268 11574
4.5x1/4/x7/8	115x6.4x22	13300	25		11581	69458268 11581
5x1/4x7/8	125x6.4x22	12200	25		11598	69458268 11598
6x1/4x7/8	150x6.4x22	10200	25		11604	69458268 11604
7x1/4x7/8	180x6.4x22	8600	25		11611	69458268 11611
9x1/4x7/8	230x6.4x22	6600	25		11628	69458268 11628

Name：capacity

Time:2012-12-16

Message：

Diamond grinding wheel grinding capacity, how to fix?

Replay:

No grinding the ability? Refers to the grinding wheel is too hard it, if this is the case, the production of the manufacturers of the grinding wheel can be called, the lowest hardness of the grinding wheel, and to increase the proportion of the diamond, to reduce the content of the resin, so as to achieve the self-sharpening grinding wheel, if the roughness can allowed, to maximize the intensity of the grinding wheel. I only know, I hope you have some help.
